V-Nerezová lanová svorka 3mm, DIN 741, MI
€0,46 EUR bez DPH
Jednotková cena bez DPH
/
Nedostupné
V-Nerezová lanová svorka 3mm, DIN 741, MI
Nerezová lanová svorka je vyrobená z materiálu AISI 304.
Nerezová lanová svorka spĺňa normu DIN 741.

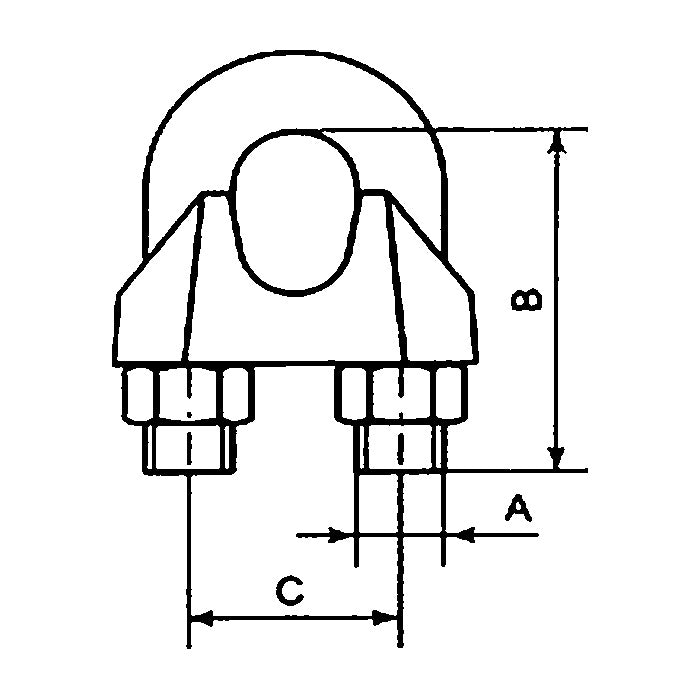

| Typ | Veľkosť | A | B | C | Materiál | Hmotnosť/ks |
| --- | (mm) | mm | mm | mm | --- | kg |
| RWL2 | 2 | 3 | 15,0 | 6,6 | AISI304 | 0,0135 |
| RWL3 | 3 | 4 | 16,0 | 9,0 | AISI304 | 0,0140 |
| RWL4 | 4 | 4 | 18,5 | 9,0 | AISI304 | 0,0145 |
| RWL5 | 5 | 5 | 19,0 | 11,0 | AISI304 | 0,0150 |
| RWL6 | 6 | 5 | 23,0 | 13,0 | AISI304 | 0,0210 |
| RWL8 | 8 | 6 | 28,0 | 16,0 | AISI304 | 0,0410 |
| RWL10 | 10 | 8 | 34,0 | 19,0 | AISI304 | 0,0680 |
| RWL13 | 13 | 10 | 45,0 | 24,0 | AISI304 | 0,1300 |
| RWL16 | 16 | 12 | 51,0 | 29,0 | AISI304 | 0,2100 |
| RWL19 | 19 | 12 | 63,0 | 32,0 | AISI304 | 0,2800 |
| RWL25 | 25 | 14 | 81,0 | 41,0 | AISI304 | 0,5500 |
| RWL3/6 | 3 | 4 | 16,0 | 9,0 | AISI316 | 0,0140 |
| RWL4/6 | 4 | 4 | 18,5 | 9,0 | AISI316 | 0,0145 |
| RWL5/6 | 5 | 5 | 19,0 | 11,0 | AISI316 | 0,0150 |
| RWL6/6 | 6 | 5 | 23,0 | 13,0 | AISI316 | 0,0210 |
| RWL8/6 | 8 | 6 | 28,0 | 16,0 | AISI316 | 0,0375 |
Nie je určené pre bezpečnostno-technické použitie!
