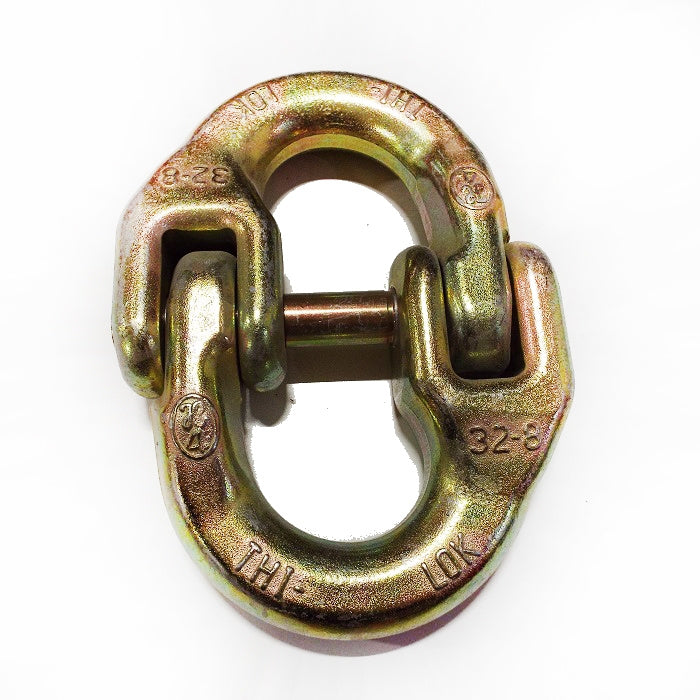

Reťazová spojka THI-LOK TWN 0829 32-8
Typ | Veľkosť | Nosnosť | E | G | A | C | F | Hmotnosť |
--- | mm | t | mm | mm | mm | mm | mm | kg |
6-8 | 6 | 0,07 | 44 | 17 | 59 | 45 | 7,5 | 0,07 |
7-8 |
7
|
1,50 | 56 | 17 | 75 | 47 | 9,0 | 0,16 |
8-8 | 8 | 2,00 | 60 | 18 | 79 | 50 | 10,0 | 0,19 |
10-8 | 10 | 3,15 | 75 | 22 | 99 | 63 | 12,0 | 0,35 |
13-8 | 13 | 5,30 | 98 | 28 | 128 | 80 | 15,0 | 0,73 |
16-8 | 16 | 8,00 | 110 | 33 | 148 | 98 | 19,0 | 1,38 |
18-8 | 18 | 10,00 | 122 | 36 | 165 | 110 | 22,0 | 1,86 |
20-8 | 20 | 12,50 | 134 | 45 | 185 | 122 | 26,0 | 2,34 |
22-8 | 22 | 15,00 | 145 | 46 | 198 | 132 | 26,0 | 3,16 |
26-8 | 26 | 21,20 | 164 | 55 | 225 | 156 | 30,0 | 5,00 |
32-8 | 32 | 31,50 | 192 | 65 | 268 | 192 | 37,0 | 9,33 |
